We work personally with all our customers from design through to finished product, providing samples where necessary. We also specialise in small batch and large batch production in various materials, including mild and stainless steel, aluminium, brass, plastics and nylon etc and can provide a machining capability for customers who wish to supply their own material.

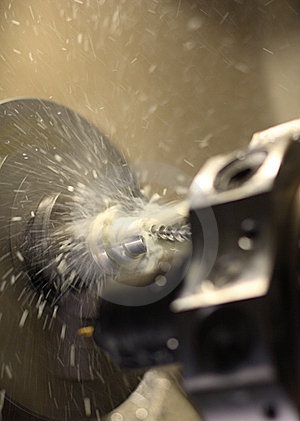

CNC TURNING

Mori-Sieki SL25MCY

  • 63.5mm Through Spindle
  • 700mm Between Centres
  • 500mm Turned Length
  • 300mm Maximum Turned DIA
  • C Axis (0.001 Deg Increments)
  • 12 Station Turret
  • 12 Driven Tool
  • Tailstock
  • Y Axis
  • Toolsetter
  • Short Magazine Bar Feed
  • 15KW Spindle
  • Driven Tooling

Doosan Puma 3100 XLY

  • 102mm Through Spindle
  • 2190mm Between Centres
  • •2125mm Turned length
  • 420mm Maximum Turned Diameter
  • C Axis (0.001Deg Increments)
  • 12 Station BMT55 Turret
  • 12 off Driven Tools
  • Programmable Hydraulic Steady
  • Programmable Tailstock
  • Auto Toolsetter
  • 22KW Spindle 2 speed Gearbox

Hitachi – Seiki  HTS 40S

  • 105mm Through Spindle
  • 1250mm Between Centres
  • 1100 Maximum Turned Length
  • 625mm Maximum Turned Diameter
  • 10 Station Turret

Mori – Seiki SL7

  • 1500mm Between Centres
  • 1500mm Turned Length
  • 700mm Maximum Turned Dia
  • 12 Station Turret
  • Tailstock

Emco Emcoturn 360

  • 80mm Through Spindle
  • 630mm Between Centres
  • 520mm Maximum Turned Length
  • 390 Maximum Swing
  • 360 Maximum Turned Diameter
  • 12 Station 30VDI Turret

Tsugami NCM 45/160 (3 off)

  • 45mm Through Spindle
  • 370mm Between Centres
  • 350mm Maximum Turned Length
  • 165 Maximum Turned Diameter
  • C Axis (0.001 Deg Increments)
  • 12 Station Turret
  • 6 off Driven Tools

Beaver TC 20

  • •65mm Through Spindle
    •1250mm Between Centres
    •1000mm Turned length
    •450mm Maximum Turned Diameter
    •C Axis (1Deg Increments)
    •12 Station 40VDI Turret
    •6 off Driven Tools
    •Programmable Hydraulic Steady
    •Tailstock
    •Renishaw Auto Toolsetter
    •22KW Spindle 2 speed Gearbox







CNC Milling

Dah Lih MCV – 2600 Vertical Machining Centre

  • Travels X 2600mm Y 870mm Z 900mm
  • 22 KW Spindle
  • Through Tool coolant
  • Full 4th Axis 500mm Chuck
  • 30 Station Toolchanger BT50

Mori Sieki MV55 Vertical Machining Centre

  • Travels X 1050mm Y 550mm Z 650mm
  • 15KW Spindle
  • Through Tool Coolant
  • Full 4th Axis 305mm Chuck
  • 24 Station Toolchanger BT50

Beaver VC55 Vertical Machining Centre

  • Travels X800mm Y600mm Z650mm
  • 22KW Spindle
  • Through Tool Coolant
  • Full 4th Axis
  • Power Mag Chuck
  • 26 Station Toolchanger DIN 69871

Mazak V20 Powercenter

  • Travels X1500mm Y810mm Z830mm
  • Full 4th Axis 500mm Chuck
  • 40 Station Toolchanger BT50

XYZ Prototrak 3000

  • 2 Axis C.N.C. Manual Mill
  • Travels X870mm Y425mm Z450mm

 Beaver400 Toolmaker Machining Centre

  • Travels X600mm Y400mm Z500mm
  • Full 4th Axis

Other Equpment

MANUAL TURNING

  • Colchester Magnum 1250
    4000mm Between Centres
    700mm Swing Over Bed DRO

  • Colchester Triumph 2000
    1250mm Between Centres
    400mm Swing Over Bed DRO

  • Colchester Master 2500
    1000mm Between Centres
    320mm Swing Over Bed

  • Harrison M300
    1000mm Between Centres
    300mm Swing Over Bed DRO


SAWING

  • 1off Automatic Bandsaw
    250mm Diameter

  • 2 off Bandsaws
    200mm Diameter

  • 1off Coldsaw
    300mm Diameter


MANUAL MILLING

  • 2 off Bridgeport Knee Mills
    1 off Slotting Attatchment
    2 off DRO


WELDING

  • 1 x 200amp mig

  • 2 x 300amp mig

  • 1 x 500amp mig

  • 1 x 400amp Pulsed Tig


HORIZONTAL BORING

  • Kearns and Richards SH75
  • DRO

 GRINDING

  • Jones and Shipman 540 Surface Grinder
    14inch x 6inch Capacity

Honing

  • Delapena Beam Stroker 250mm
